Product Description

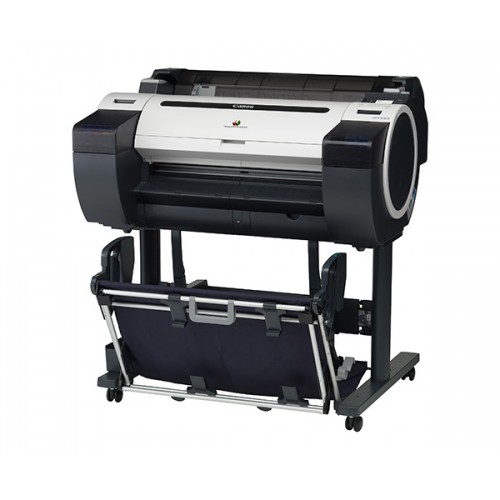

Canon imagePROGRAF iPF685 24" Large-Format Inkjet Printer
The Canon imagePROGRAF iPF685 is a professional 24-inch large-format printer engineered for high-volume CAD drawings, GIS maps, and posters. With its advanced FINE print technology and a five-color ink system, this 24 inch wide format printer delivers exceptional line accuracy and vibrant output at speeds up to 25 seconds per Arch D drawing. The iPF685 combines robust media handling, a 320GB hard drive, and seamless network connectivity, making it an ideal Canon large format printer for architects, engineers, and graphic designers.
Product Highlights
- Max Resolution: 2400 x 1200 dpi
- Max Print Size: 24" x 59'
- Print Speed: 24 x 36" Drawing in 25 sec
- Ink System: Five-Color Dye/Pigment Reactive Ink Set
- Sub-Ink Tank System for continuous printing
- Internal Hard Drive: 320GB for job storage
- Economy Print Mode reduces ink consumption
- Optimized Module for AutoCAD
- PosterArtist Lite Software included
- Connectivity: USB 2.0 and Ethernet
Technical Specifications
Printing Method
| Print Technology | FINE (Full-Photolithography Inkjet Nozzle Engineering) |
| Print Resolution | 2400 x 1200 dpi |
| Print Speed | Arch D 24 x 36" (61.0 x 91.4 cm): 25 seconds in Economy Mode |
| Print Head | PF-04 |
| Ink Droplet Size | 4 pl |
| Line Accuracy | ±0.1% or less |
| Minimum Line Weight | 0.79 mil (0.02 mm) |
| Number of Nozzles | Matte Black: 5,120 nozzles Other Colors: 2,560 nozzles per color |
| Nozzle Pitch | 1200 dpi x two rows |
| Printhead Swath | 1.07" (27.2 mm) |
| Ink Types | Dye: Cyan (C), Magenta (M), Yellow (Y), Black (K) Pigment: Matte Black (MBK) |
| Compatible Ink Tanks | PFI-107 (130 ml): C, M, Y, BK, MBK PFI-207 (300 ml): C, M, Y, BK, MBK |
| Ink Tank Capacity | Starter: 130 ml (MBK), 90 ml (C, M, Y, BK) Replacement: 130 ml (PFI-107) or 300 ml (PFI-207) |
| Ink Supply Method | Tubing system with sub-ink-tanks for continuous ink supply |
| Nozzle Recovery System | Non-firing nozzle detection and compensation |
Media Handling
| Paper Handling | Roll Feed: One roll, top-loading, front output Cut Sheet: One sheet, top-loading front output |
| Media Width | Roll Feed: 10-24" (254-610 mm) Cut Sheet: 8-24" (203-610 mm) |
| Maximum Print Length | Roll Feed: 59' (18 m) Cut Sheet: 63" (1.6 m) |
| Margins | Roll Feed, All Sides: 0.12" (3 mm) or 0" (0 mm) for borderless Cut Sheet, Leading, Sides (Left and Right): 0.12" (3 mm) Cut Sheet, Trailing: 0.91" (23 mm) |
| Borderless Printing Width | Roll Media: 10" (25.4 cm), B4, A3, 14" (35.6 cm), A2, 17" (43.2 cm), B2, A1, 24" (61.0 cm) |
| Media Cutter | Durable dual-blade rotary cutter |
| Media Thickness | 2.8-31.4 mil (0.07-0.80 mm) |
| Core Sizes | 2" (5.1 cm) and 3" (7.6 cm) |
| Maximum Media Roll Diameter | 5.9" (150 mm) |
| Output | Flat stacker, basket |
| Output Capacity | 20 sheets with stackable configuration |
Connectivity
| Interfaces | USB 2.0 10/100/1000Base-T/TX |
| Controller | L-COA Processor |
| Memory | 256 MB |
| Internal Hard Drive | 320 GB 32 GB dedicated file processing memory |
| Mail Server | 1 x Common inbox 29 x User inboxes |
| Compatible Operating Systems | Windows XP (32-bit), Server 2003 (32/64-bit), Server 2008 (32/64-bit), Server 2012 (64-bit), Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit) Macintosh OS X 10.6.8-10.9.x |
| Print Languages | GARO (Canon proprietary), HP-GL/2, HP RTL |
| Protocols | TCP/IP (IPv4/IPv6), IPX/SPX, AppleTalk, SNMP (Canon MIB supported), HTTP |
Physical & Environmental
| Acoustic Noise | Operation: 47 dB Standby: 35 dB or less Acoustic Power: 64 dB |
| Power Requirements | 100-240 VAC, 50-60 Hz |
| Power Consumption | Maximum: 140 W or less Standby: 5 W or less Power Off: 1 W or less (Executive Order Compliant) |
| Certifications | Electrical Safety Regulations: TUV (USA), cTUV (USA), TUV.S mark, CB certification (others) Electromagnetic Interface Regulations: FCC Class B (USA), IC Class B (Canada) Environmental: ENERGY STAR (worldwide), RoHS Directive |
| Operating Conditions | Temperature: 59 to 86°F (15 to 30°C) Humidity: 10 to 80%, non-condensing |
| Dimensions (WxDxH) | Basket Open: 42 x 39 x 35" (106.7 x 99.1 x 88.9 cm) Basket Extended for Flatbed Stacking: 42 x 39 x 43" (106.7 x 99.1 x 109.2 cm) |
| Weight | 125 lb (56 kg) with stand |
Whether you need precise CAD line work or vibrant posters, the Canon iPF685 24 inch printer delivers professional results with speed and reliability. Upgrade your workflow with this trusted Canon large format printer today.
