Product Description

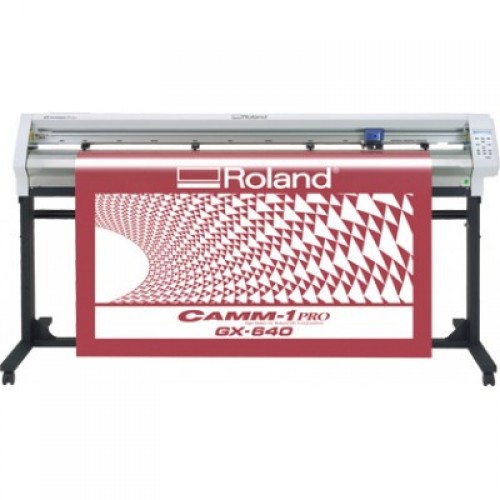

Roland CAMM-1 GX-640
GX Pro Series Vinyl Cutters
- Cut precision graphics from vinyl, window tint, twill, sandblast mask and more
- 30", 40", 54" and 64" models available
- Roland CutStudio software included to get started right out-of-the-box
Combining precision and performance with Roland's legendary reliability, CAMM-1 Pro GX Series vinyl cutters are the ideal choice for contour cutting a wide range of materials, including vinyl, heat transfers and printed graphics. With speed, accuracy and powerful downforce, GX vinyl cutters deliver the unstoppable performance and outstanding results busy shops need to produce high-quality signs, apparel, vehicle graphics and more.
Distinguishing Features
- 36”, 46”, 54” and 64” models available
- Cut at up to 33 inches per second with high-precision
- Max down force of 350 grams
- CutStudio software included
- GX-640 includes overlap cutting to enable cutting of thicker substrates such as diamond-grade reflective vinyl
- Three-Year Warranty
More Power, Finer Details
GX vinyl cutters use digital servomotors for maximum accuracy and cutting speeds up to 33 inches per second. These professional-grade cutters also feature a curve-smoothing function that allows precise cutting of fine details, even at high speeds. Downforce of up to 350 grams ensures high cutting performance even on thicker substrates. The result is faster production and better-looking graphics on a wide variety of materials, day-in and day-out.
CutStudio Included
Bundled with any GX Series cutter, Roland CutStudio software allows designers to quickly and easily enlarge, reduce, re-position, rotate and mirror images. BMP, JPG, STX, AI, and EPS file formats are all supported.
Optional Film Design
Packed with design features, Film Design supports all brands of automotive window film, offering access to more than 2,000 window film pattern kits for use with over 1,000 different vehicles.
Even More Advanced Features Included with the GX 640
OVERCUT for perfect corner cutting
The GX-640 easily cuts vinyl and polyurethane materials, plus a myriad of textile fabrics for decorated apparel. The OVERCUT feature cuts thicker materials by adding a margin of 1mm to the beginning and end of a vector. This ensures precise corners and accurate cuts.
OVERLAP for cutting thicker materials
For the thickest and most difficult materials, the GX-640 offers an OVERLAP feature that can cut the same graphic up to 11 times, applying steady pressure for precise, complete cuts.
The GX-640 easily cuts vinyl and polyurethane materials, plus a myriad of textile fabrics for decorated apparel. The OVERCUT feature cuts thicker materials by adding a margin of 1mm to the beginning and end of a vector. This ensures precise corners and accurate cuts.
OVERLAP for cutting thicker materials
For the thickest and most difficult materials, the GX-640 offers an OVERLAP feature that can cut the same graphic up to 11 times, applying steady pressure for precise, complete cuts.
Three-Year Trouble-Free Warranty
Roland offers unmatched reliability and support with the best post-sales care in the industry and an unprecedented Three-Year Trouble-Free Warranty included with all GX cutters. Roland DG proudly holds international ISO certifications as recognition of exceptional quality.
| MODEL | GX-300 | GX-400 | GX-500 | GX-640 |
|---|---|---|---|---|
| Cutting method | Media-movement method | |||
| Driving method | Digital control servo motor | Friction feed/Digital control servo motor | ||
| Maximum cutting area | 29 x 984-1/8" (737 x 24,998mm) | 39 x 984-1/8" (1000 x 24,998mm) | 47 x 984-1/8" (1195 x 24,998mm) | Width: 65" (1651 mm) |
| Acceptable media width | 2 to 36" (50 to 915mm) | 3-1/2 to 46" (90 to 1178mm) | 3-1/2 to 54" (90 to 1372mm) | 5-1/16" to 72.5" (130 mm to 1842 mm) |
| Maximum cutting speed | During cutting: 33ips (850mm/sec.) [in all directions] During tool-up: 47 ips (1202mm/sec) [in 45º direction] | During cutting: 33.5"/sec (850 mm/sec) (in all directions) During tool-up: 47"/sec (1202 mm/sec) | ||
| Cutting force | 20 to 350 gf | 1 to 85 cm/sec (in increments of 1 cm/sec), 20 to 350 grams force (increments of 10 grams) > | ||
| Mechanical resolution | 0.00049"/step (0.0125mm/step) | 0.000137"/step (0.0035 mm/step) | ||
| Software resolution | 0.00098"/step (0.025mm/step) | 0.000984"/step (0.025 mm/step) | ||
| Distance accuracy | Error of less than ± 0.2% of distance traveled, or 0.00039 (0.1mm), whichever is greater | Error of less than 0.2% of distance traveled, or 0.00394" (0.1 mm), which is greater | ||
| Repetition accuracy | 0.1mm or less (excluding stretching/contraction of the material) Range for assured repetition accuracy For materials with a width exceeding 24" (610mm): Length 157-7/16" (4000mm) (GX-400/500 only) For materials with a width of 24" (610mm) or less: Length 314-15/16" (8000mm) | 0.004" (0.1 mm) or less | ||
| Interface | Serial (RS-232C compatible), USB (Rev. 1.1) | Serial (RS-232C-compatible), USB (Rev 1.1) | ||
| Buffer size | 8MB (2MB for re-plot buffer) | 2 MB (buffer size: 8 MB) | ||
| Power supply | AC 100V to 240V +/- 10% 50/60Hz 1.2A | AC 100V to 240V =/- 10% 50/60Hz 1.1A | AC 100V to 240V ±10% 50/60Hz 1.2A | |
| Power consumption | Approx. 95W | Approx. 100WApprox. 100W | ||
| Acoustic noise level | Cutting mode: under 62 dB (A) Standby Mode: under 40 dB (A) (According to ISO 7779) | |||
| Dimensions with stand | 45-1/16(W) x 28-5/8(D) x 43-13/16"(H) 1144(W) x 727(D) x 1113mm (H) | 55-3/8(W) x 28-5/8(D) x 43-13/16"(H) 1407(W) x 727(D) x 1113mm(H) | 63-1/16(W) x 28-5/8(D) x 43-13/16(H) 1602(W) x 727(D) x 1113mm (H) | 83-1/4 (W) x 28-5/8 (D) x 43-13/16 (H) in (2155 (W) x 727 (D) x 1113 (H) mm) |
| Weight with stand | 97lb. (44 kg) | 112.4lb. (51 kg) | 121.2 lb. (55 kg) | 141.1 lb (64 kg) |
| Operating temperature | 41 to 104F (5 to 40C) | |||
| Operating humidity | 35 to 80% (non-condensing) | |||
| Standard accessories | Power cord, blade, blade holder, alignment tool, cable clamp, replacement blade for separating knife, Roland Software Package CD-ROM (CutStudio design software, plug-ins for CorelDraw 10/11/12 and Adobe Illustrator 9/10/CS), startup guide, user manual | Power cord, blade holder (XD-CH2), pin, blade, blade (ZEC-U5022), alignment tool, cable clamp, replacement blade for sheet cutter, USB cable, Roland software CD-ROM, setup guide, user's manual | ||
