Product Description

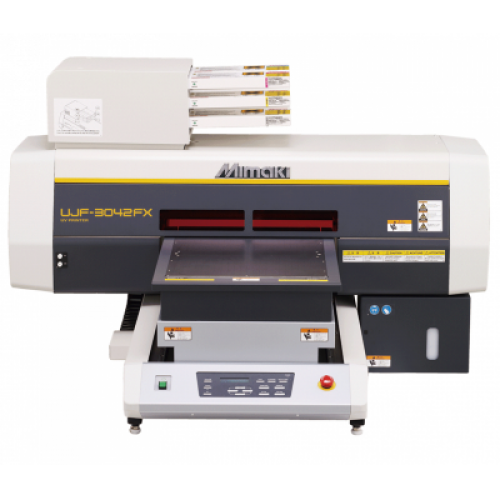

Mimaki UJF-3042FX UJF-3042FX | ||
|---|---|---|
| Head | On-demand Piezo head | |
| Print resolution | 720 × 600 dpi, 1,440 × 1200 dpi | |
| Ink | Hard UV curable ink : LH-100, LF-140, LF-200 | |
| Ink capacity | 220 ml ink cartridge / 600 ml ink pack | |
| Inkjet primer | PR-100 (220 ml ink cartridge / 600 ml ink container) | |
| Maximum print width | Width : 300 mm (11.8 "), Length : 420 mm (16.5 ") | |
| Media | Width | Width : 364 mm (14.3 "), Length : 463 mm (18.2 ") |
| Thickness | Max. 50 mm (1.97 ") | |
| Weight | Less than 5 kg (11 lbs) | |
| Set device | Air suction by vacuum | |
| UV device | Equipped with UV Light Emitting Diodes | |
| Interface | USB 2.0 | |
| Applicable standard | VCCI class A, FCC class A, UL, RoHS Directive, CE Marking | |
| Power specifications | AC 100 - 240 V (Automated voltage conversion) | |
| Power consumption | Less than 350 VA | |
| Operational environment | Temperature | 20 - 35 °C (68 - 95 °F) |
| Humidity | 35 - 65 % Rh | |
| Dust | Equivalent to normal office level | |
| Weight | Approx. 113kg (249.1 lbs.) | |
| Dimensions (W x D x H) | 1,200 mm x 1,090 mm x 770 mm (47.2 " x 42.9 " x 30.3 ") | |
・Inks would not be cured when printing speed is faster than that of draft mode.
- All trademarks or registered trademarks are the property of their respective owners.
- Specifications are subject to change without notice.
- Some of the screens and printing samples in this website are artificial renderings.
- Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
