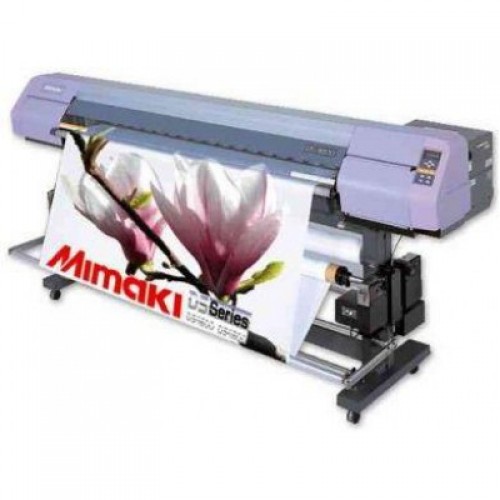

MIMAKI DS 1800 TEXTILE PRINTER (74-INCH)

MIMAKI DS 1800 TEXTILE PRINTER (74-INCH)

Introducing a high resolution system that is more ecologically friendly and provides more efficient operation than traditional sublimation transfer systems. The DS-1600 Textile Printer is a 64-inch “direct to dye sublimation” printer that doesn’t require transfer medium. A new Mimaki inkset formulation creates a robust color gamut when applied directly to polyester based roll materials.

Sharp, high-quality print
Direct printing provides finer lines and sharper edges than traditional transfer systems.

Environmental-friendly
No need to use transfer paper.

Reduced cost
This system requires no transfer paper or liner paper, so running costs are much lower than the costs of traditional transfer systems.

Improved operational efficiency
The system avoids cockling of printed transfer paper and mistakes made by wrinkling transfer paper when transferring the ink onto fabric.

Equipped with media take-up device and media feeder with a dancer roller
The tension bar moves up and down to adjust proper feeding. Suitable for continuous operation.

Ink tray
In order to prevent ink that has penetrated the fabric from marking other fabrics, a tray is provided.

High-speed print heads
The head configuration is an array of two staggered print heads. 1-way (single ink set) for fast printing and 2-way (dual ink set) for multipurpose printing are available. In addtion, both print modes can utilize either 4-color high speed printing or 6-color high quality printing.

Fabric supply mechanism
In addition to the drive roller and friction roller, the take-up unit and feeding unit with a dancer roller cause tension in the fabric to prevent it from wrinkling. The fabric retainer holds both edges of the fabric, preventing it from touching the print head.

Specifications

Item		DS-1600	DS-1800
Print head	Method	Piezo-electric drop-on demand
	Nozzle Configuration	Eight heads (4 x 2 lines, stagger arrangement)
Resolution		360, 540, 720 dpi
Maximum printing width		1,620mm(63.7")	1850mm (72.8")
Head height adjustment		1.2mm (0.04") to 10mm (0.39")
Printing		4-Colours	6-Colours
Nozzle		360 nozzels per colour	180 nozzles per colour
Print mode (1*)	6-colour printing	360 x 360 dpi: 2/4/8 pass Bi/Uni directional
		360 x 540 dpi: 3/6/12 pass Bi/Uni directional
		360 x 720 dpi: 4/8/16 pass Bi/Uni directional
		720 x 720 dpi: 4/8/16 pass Bi/Uni directional
	4-colour printing	360 x 360 dpi: 1/2/4 pass Bi/Uni directional
		360 x 540 dpi: 3/6/12 pass Bi/Uni directional
		360 x 720 dpi: 2/4/8 pass Bi/Uni directional
		720 x 720 dpi: 2/4/8 pass Bi/Uni directional
Ink type	Dye Sublimation	C, M, Y, K, Lc, Lm
	Aqueous Pigment	C, M, Y, K
Ink Volume (2*)		6 colour print 1-way: 220cc x 2/colour, 2-way: 220cc x 1/colour
		4 colour print 1-way: 220cc x 4/colour, 2-way: 220cc x 2/colour
Media	Type	Polyester / Cotton (3*)
	Width	200mm (7.8") - 1650mm (64.9")	200mm (7.8") - 1900mm (74.8")
	Thickness	Less than 7mm (0.27")
	Outside diameter	Less than Ø250mm (9.84")
	Roll weight	Less than 30kg (66lbs)
	Roll inside diameter	1.5" - 3"
	Printing surface	Printing is possible on either sides
	Roll end treatment	Light adhesive tape is used to allow media to be removed
Margin (roll fabric)		10mm (0.39") ±0.5mm (0.01"), left and right side
Interface		IEEE-1284 / IEEE-1394
Command		MRL-1E (ESC/PV.1 base) Mimaki original command
Power requirement		AC100V to 240V ±10%, (auto voltage) 50/60Hz±1Hz
Power consumption		Less than 500W
Operational Environment		Temperature: 15°C (55°F) to 30°C (86°F) Humidity: 35% to 65%Rh (no condensation)
Dimentions	Width	2750mm (108.3")	3040mm (119.7")
	Depth	940mm (37.0")
	Height	1350mm (53.2")
Weight		230Kg(507lbs)	250kg (551lbs)
