Epson I1600-E1 Eco Solvent Printhead | PrecisionCore MicroTFP
Your shopping cart is empty!
Product Description

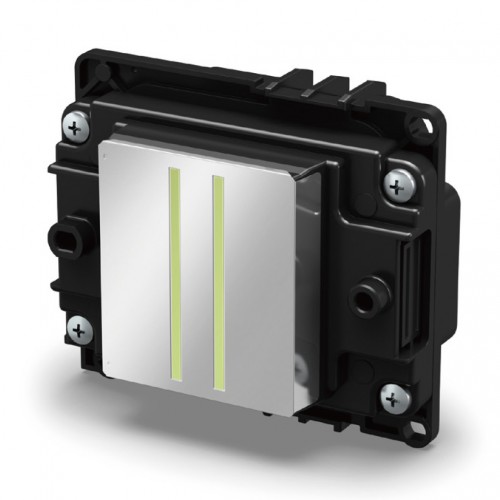

Epson I1600-E1 Eco Solvent Printhead - PrecisionCore MicroTFP
The Epson I1600-E1 eco solvent printhead is a high-performance industrial printhead featuring Epson's advanced PrecisionCore MicroTFP technology. With 1600 nozzles and support for up to 4 colors, this printhead delivers exceptional print quality, speed, and reliability for eco solvent printing applications.
Key Technologies
1. PrecisionCore Technology
- MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi / 2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality.
- Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.
2. Support for Grayscale
- Epson's unique Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely controlling the droplet volume.
3. High Resolution
- Ink ejection of up to 4 colors realize with high resolution (600 dpi/color).
4. High Durability
- PrecisionCore Print Head has proven high durability and extended service life by Epson's industrial printers.
Product Specifications
| Product Name | I1600-E1 |
| Brand | Epson |
| Ink Type | Eco Solvent |
| Type | PrecisionCore MicroTFP Printhead |
| Dimensions (W x D x H) | 2.7 x 2.3 x 1.4 inch (69.1 x 59.4 x 35.6 mm) |
| Weight | 80 g |
| Number of Nozzles | 1600 |
| Nozzle Pitch / Nozzle Row | 1/300 inch |
| Nozzle Rows | 4 rows |
| Nozzle Resolution | 300 npi/row, 600 npi/2 rows |
| Maximum Number of Color Inks | 4 colors |
| Effective Print Width | 1.33 inches (33.8 mm) |
| Viscosity Range | 3-4 mPa•s |
| Positioning Mechanism | Reference hole |
Whether you need high-speed, high-quality eco solvent printing, the Epson I1600-E1 printhead delivers exceptional performance with its PrecisionCore MicroTFP technology. The 1600 nozzle configuration with 4 rows and support for up to 4 colors at 600 dpi resolution makes this printhead ideal for a wide range of industrial printing applications. Upgrade your printing capabilities with this reliable and high-performance printhead today.
