Product Description

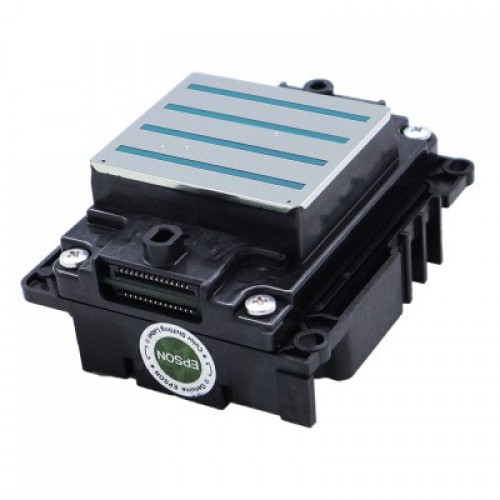

Epson I3200-E1 Eco Solvent Printhead | PrecisionCore 3200 Nozzle Unlocked
The Epson I3200-E1 Solvent printhead is a cost-effective 1.33-inch wide MEMs head series providing high productivity and high image quality with 600 dpi high-density resolution. This printhead is suitable for eco-solvent inks and is unlocked, offering maximum flexibility for your printing applications.
The Epson I3200-E1 eco solvent printhead features PrecisionCore MicroTFP technology with 3200 nozzles arranged in 8 rows, delivering exceptional print quality and reliable performance for industrial printing systems.
Key Features
- Cost-effective 1.33-inch wide MEMs head series
- High productivity with high-speed printing capability
- High image quality with 600 dpi high-density resolution
- 3200 nozzles (8 rows for high-speed printing)
- Unlocked for maximum flexibility
- Suitable for eco-solvent inks
- Versatile droplet ejection with binary and grayscale modes
Product Specifications
| Product Name | I3200-E1 |
| Brand | Epson |
| Ink Type | Eco-Solvent |
| Type | PrecisionCore MicroTFP Printhead |
| Width x Depth x Height | 69.1 x 59.4 x 35.6 mm |
| Weight | 82 g |
| Number of Nozzles | 3200 |
| Nozzle Pitch / Nozzle Row | 1/300 inch |
| Nozzle Rows | 8 rows |
| Nozzle Resolution | 300 npi/row, 600 npi/2 rows |
| Maximum Number of Color Inks | 4 colors |
| Effective Print Width | 33.8 mm (1.33 inches) |
| Viscosity Range | 3-4 mPa·s |
| Lock Status | Unlocked |
Droplet Ejection Performance
| Mode | Droplet Size | Frequency |
|---|---|---|
| Binary | 6 pl | 43.2 kHz |
| 3 Levels Grayscale | 6.3, 12.3 pl | 21.6 kHz |
| 4 Levels Grayscale | 3.8, 5.5, 8.7 pl | 21.6 kHz |
Whether you need high-speed, high-quality eco solvent printing, the Epson I3200-E1 printhead delivers exceptional performance with its PrecisionCore MicroTFP technology and 3200 nozzle configuration. The unlocked status provides maximum flexibility for various printing applications. Upgrade your printing capabilities with this cost-effective and reliable printhead today.
