Product Description

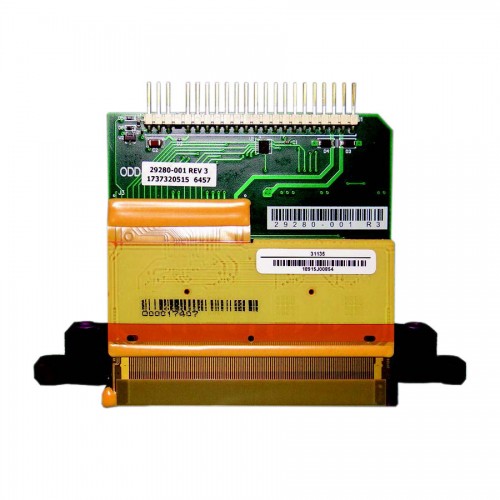

Emerald Sapphire QE-256/80 AAA Printhead | 80 pL Industrial Printhead
The Emerald Sapphire QE-256/80 AAA printhead is designed to eject adjustable 80 to 200 picoliter drops in binary jetting mode or a 80-picoliter fundamental drop in grayscale mode. This is done at a nominal 8-meter per second drop velocity when jetting fluids in the 10 to 14 centipoise range. Unparalleled flexible modes of operation include adjustable binary drop size and grayscale capability. Robust field proven metal nozzle plate technology provides precise drop placement accuracy of a wide variety of ink types, including UV-curable, solvent and aqueous.
Key Features
- Up to 80 picoliter nominal drop size for precise ink deposition
- 256 individual addressable nozzles for high-resolution printing
- Incorporates VersaDrop™ grayscale jetting capability for versatile operation
- Excellent channel-to-channel uniformity for consistent output
- High frequency continuous operation for productive printing
- Lightweight with thin profile for easy integration
- Supports UV-curable, solvent, and aqueous-based inks
- Dual-ported with minimal wetted surface area
- OEM accessible non-volatile memory area for tracking purposes
- Integral temperature sensor for optimal performance monitoring
- Operation up to 90°C [194°F] for demanding applications
Product Specifications
| Product Type | Printhead |
| Brand | Emerald Sapphire |
| Model | QE-256/80 AAA |
| Nominal Drop Size | Up to 80 picoliter |
| Adjustable Drop Size Range | 80 to 200 picoliters |
| Number of Nozzles | 256 individually addressable |
| Jetting Modes | VersaDrop™ grayscale and binary |
| Drop Velocity | Nominal 8 meters per second |
| Viscosity Range | 10 to 14 centipoise |
| Supported Inks | UV-curable, solvent, aqueous-based |
| Channel-to-Channel Uniformity | Excellent |
| Operation Temperature | Up to 90°C [194°F] |
| Temperature Sensor | Integral |
| Port Configuration | Dual-ported with minimal wetted surface area |
| Memory | OEM accessible non-volatile memory area |
| Design | Lightweight with thin profile |
| Nozzle Plate Technology | Field proven metal nozzle plate |
Whether you need precise jetting for UV-curable, solvent, or aqueous-based inks, the Emerald Sapphire QE-256/80 AAA printhead delivers versatile performance with its VersaDrop grayscale capability and broad ink compatibility. The adjustable binary drop size from 80 to 200 picoliters provides exceptional flexibility for various printing applications. With excellent channel-to-channel uniformity, high frequency continuous operation, and operation up to 90°C, this industrial printhead is built for demanding production environments. Upgrade your printing capabilities with this reliable and versatile printhead today.
