Product Description

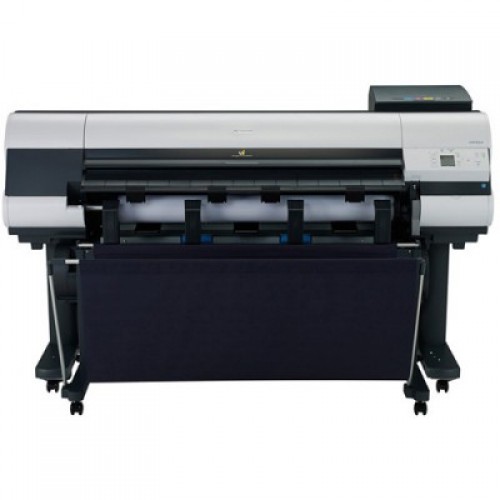

Canon imagePROGRAF iPF840 Large Format Printer - 44" 5-Color Production Printer
The Canon imagePROGRAF iPF840 is a professional 44-inch large format printer engineered for high-volume production environments. With its advanced 5-color ink system and FINE print technology, this wide format printer delivers exceptional image quality at resolutions up to 2400 x 1200 dpi. The iPF840 combines robust media handling, a 320GB hard drive, and high-capacity ink tanks, making it an ideal Canon large format printer for CAD drawings, GIS maps, and vibrant posters.
Key Features
- Print Width: 44" / 1.11 m
- Max Resolution: 2400 x 1200 dpi
- Ink System: 5-Color Dye/Pigment Reactive Ink Set
- Ink Capacity: 330 ml or 700 ml per color
- Internal Hard Drive: 320GB for job storage
- Connectivity: USB 2.0 and Gigabit Ethernet
- Borderless Printing: Up to 42" width
- Non-firing Nozzle Detection and Compensation
Technical Specifications
Printing Method
| Printing Technology | 5-Color 44" / 1.11 m Printer |
| Print Resolution | 2400 x 1200 dpi (Max) |
| Nozzle Pitch | 1,200 dpi non-firing nozzle detection and compensation |
| Number of Nozzles | Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
| Minimum Ink Droplet Size | 4.0 pl |
| Ink Type | Dye/Pigment Reactive Ink |
| Colors | Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black |
| Ink Capacity | 330 ml, 700 ml per color |
| User Replaceable | Print Head: PF-04 Maintenance Cartridge: MC-10, MC-09 Ink Tanks: PFI-307 (330 ml: C, M, Y, BK, MBK), PFI-707 (700 ml: C, M, Y, BK, MBK) |
Media Handling
| Paper-Feed Method | Roll Feed: One roll, front loading, front output Cut Sheet: One sheet, front loading, front output |
| Media Width | Cut Sheet: 8 to 44" / 20 cm to 1.12 m Roll Feed: 10 to 44" / 25 cm to 1.12 m |
| Media Thickness | 2.8 to 31.5 mil / 0.07 to 0.8 mm |
| Maximum Roll Print Length | 59' / 18 m |
| Maximum Media Roll Diameter | 5.9" / 15.1 cm |
| Borderless Printing Width | 10, 14, 17, 24, 36, 42" / 25, 35, 43, 61, 91, 107 cm |
Connectivity & System
| Standard Interface | USB 2.0 High-Speed 10/100/1000 Base-T/TX |
| Hard Drive | 320 GB |
| Languages | GARO (Canon Proprietary), HP-GL/2, HP-RTL |
| OS Compatibility | Windows: XP 32-bit/Vista/7/8/8.1 Macintosh: OSX 10.6.8 - 10.10 |
Physical & Environmental
| Noise Level | Operation: 52 dB (A) or less Standby: 35 dB (A) or less Acoustic Power: Approx. 6.8 Bels or less |
| Power Requirements | 100 to 240 VAC (50 to 60 Hz) |
| Power Consumption | Maximum: 190 W or less Standby: 5 W or less Power Off: 0.5 W or less (compliant with Executive Order) |
| Environmental | Temperature: 59 to 86°F / 15 to 30°C Humidity: 10 to 80% |
| Dimensions (WxDxH) | 75 x 51 x 45" / 1.9 x 1.3 x 1.14 m |
| Weight | 417 lb / 189 kg with stand |
Packaging Information
| Box Dimensions (LxWxH) | 84.0 x 62.5 x 45.4" |
Whether you need high-volume CAD production or stunning large-format posters, the Canon iPF840 large format printer delivers professional results with speed, precision, and reliability. Upgrade your production workflow with this powerful 44-inch wide format printer today.
