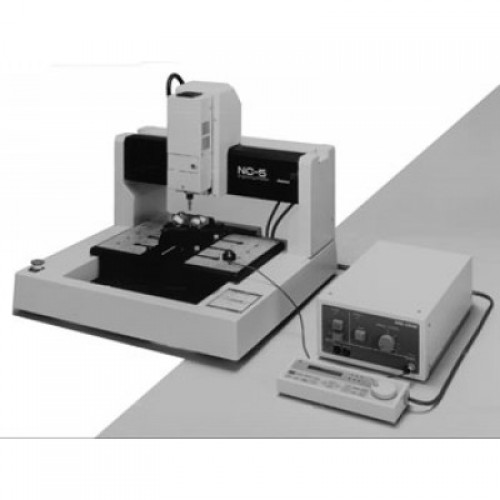

Mimaki NC-5 Modeling Plotter

Mimaki NC-5 Modeling Plotter

■Maximum modeling area: 483 x 305mm (19 x 12")

■Support of HP-GL*1 and G code*2 enables the NC-5 to work with vareious modeling software / CAD software and CNC commands.

■Mechanical Resolution: 0.5μm

■High Horse Power: 1HP(750w)

■Simultaneous 3-axis linear interpolation command for smooth and speedy 3D modeling.

■Models on metals as well as plastics.

■Rigid construction and precisely controlled servo motors for all X, Y and Z axes provide very accurate modeling.

■Coolant can be applied while modeling.

■Collet spindle can use modeling tools (up to 10mm (0.4") shank diameter)

■T-slot table and Vacuum table options are available.

■Z stroke is 110mm (4.3")

■Handy operation panel for ease of use.





NC-5
X-Y Axes	Working surface		483mm x 305mm (19" x 12") *1
	Maximum Material Size		520mm x Unlimited (20.5" x Unlimited)
	Speed	Modeling	0.5-80mm / sec (0.02"-3.1" / sec)
		Moving	0.5-80mm / sec (0.02"-3.1" / sec)
	Acceleration		0.3G
	Mechanical Resolution		0.5μm
Z Axis	Z stroke		110mm (4.3")
	Maximum Material Height		130mm (5.1")
	Speed	Modeling	0.5-80mm / sec (0.02"-3.1" / sec)
		Moving	0.5-80mm / sec (0.02"-3.1" / sec)
	Mechanical Resolution		0.5μm
Command			MGL-IIC3, G *2
Spindle	Maximum Rotation		15000rpm
	Adjustable step		Stepless adjustment 2,000-15,000 rpm
Positioning			JOG Key or JOG Dial
Maximum Material Weight			10kg
Method of setting Endmill			Collet Chuck
Programmable Steps			25μm or 10μm (MGL-IIC3), 1μm (G)
Maximum Shank Diameter of Endmill			10mm (0.4")
Receiver buffer size			1MB
Interface			RS-232C
Table flatness accuracy			0.2mm
Distance accuracy			±0.15mm or ±0.05% of moving distance
Perpendicularity			±0.3mm / 300mm
Repeatability			0.05mm
Origin repetition accuracy			±0.1mm
Power consumption			1,400VA or less
Power requirement			AC 100-120 / 220-240V 50 / 60Hz (Changed by Tap)
Operation enviorment			5-40ºC 30-75% (Rh) No Condensation
Dimensions (W x D x H)			725mm x 755mm x 660mm (Body)
			285mm x 505mm x 162mm (Controller)
Weight			70kg (Body)
			25kg (Controller)

Model

NC-5	Maximum engraving area: 483mm x 305 mm (19.0 x 12.0")
