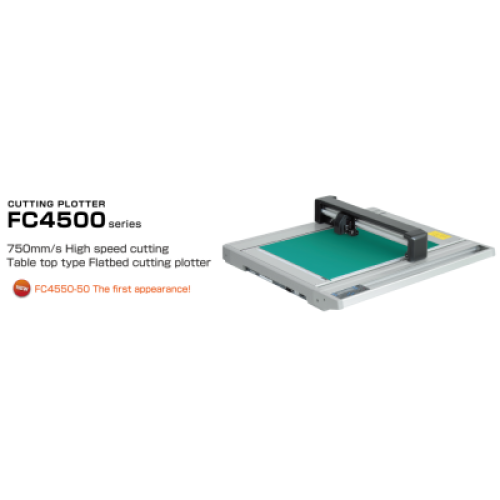

Graphtec FC4550-50

Graphtec FC4550-50

Maximum cutting speed is 750mm/s Table top type cutting plotter with excelent cost performance

Flatbed cutting plotter is used for not only sign making but also for a wide range of industrial applicaitons and processes. Max.750mm/s cutting speed is useful for getting high productivity. The FC4500 Series are professional flatbed cutting plotters capable of processing a wide variety of materials with accuracy. Compact size that can be set on a table with precise control of contour cut, half cut,perforated cut, and plotting.this FC4500 series is the most economical solution for cutting thick, hard materials that cannot be fed through a grit rolling type cutting plotter.



Model name	FC4550-50	FC4510-60
Configuration	Digital servo system, Flatbed
Media hold-down method	Cling mat	Adhesive sheet / mat
Effective cutting area	590 x 430 mm (23.2 x 16.9 inch)	860 x 600 mm (33.8 x 23.6 inch)
Mountable media	500 mm (19.6 inch) (Y-axis direction)	666 mm (26.2 inch) (Y-axis direction)
Media type	Marking film (vinyl, fluorescent, and reflective) Stiff paper/card (for stencils, etc.) up to 0.5 mm thick *1 Polystyrene foam sheets up to 0.8 mm thick *2 Sandblast rubber sheets up to 1.0 mm thick *2 Microflute board (F/G grades) Clear sheets for plastic boxes High-intensity reflective film *3
Maximum cutting speed	750 mm/s (30 inch/s) (1 to 75 cm/s in 23 steps)
Cutting pressure	Tool 1: Max. 5.88 N (600 gf), in 48 steps Tool 2: Max. 2.94 N (300 gf), in 30 steps	Tool 1, Tool 2: Max. 5.88 N (600 gf), in 48 steps
Minimum character size	approx. 5 mm square (varies with the character font and media)
Mechanical resolution	0.005 mm (5μm)
Programmable resolution	GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ *4 : 0.025 mm
Distance accuracy	Max 0.2% of the distance moved or 0.1 mm, whichever is larger *5
Perpendicularity	Max 0.3 mm / 430 mm	Max 0.4 mm / 610 mm
Repeatability	Max 0.1 mm *5
Standard interfaces	RS-232C, USB2.0 (High speed)
Buffer memory	2 Mbyte
Command sets	GP-GL and HP-GL™ *4 emulation (selected by menu)
Number of tools	2 tools
Cutter blade, pen, and tool types	Cutter blade: supersteel Pen: oil-based ballpoint pen Creasing/scoring tool
Others	ARMS (Advanced Registration Mark Sensing System), Reverse-side cutting and creasing with ARMS, Copy function, Creasing function, Repeatedly cut function
Power supply	100 to 240 VAC, 50/60 Hz (Auto switching)
Power consumption	Max. 120 VA
Operating environment	Temperature: +10 to +35 degree C (44 to 95 degree F) , Humidity: 35 to 75% RH (non-condensing)
Guaranteed accuracy environment	Temperature: +16 to +32 degree C (55 to 90 degree F), Humidity: 35% to 70% RH (non-condensing)
External dimensions (W x D x H) *6	857 x 780 x 200 mm *7 (33.7 x 30.7 x 7.9 inch)	1172 x 962 x 200 mm *7 (46.1 x 37.9 x 7.9 inch)
Weight	approx. 19 kg (42 lbs.)	approx. 27 kg *10 (60 lbs.)
Compatible OS *8	Windows 10 / 8.1 / 8 / 7 / Vista, Mac OS 10.6 to 10.10
Certifications	UL , cUL , CE making, FCC-A, EN55022-A, RoHS
