Graphtec FC2250-60VC

Graphtec FC2250-60VC

Suitable for cutting a wide range of material with the maximum cutting force 9.8N (1kgf) .

The FC2250 series is available with different table size and media hold down methods depending on the application requirements. A wide range of materials can be cut with great precision, including PET film for electronic design, chipboard, magnetic sheet or roll, matte board, gasket, marking film, sandblast rubber, high-intensity reflective film, and more!

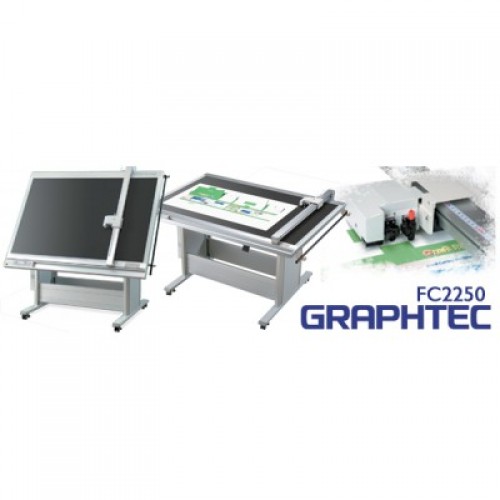

The FC2250 Large Format flatbed cutting plotter is available in 3 table sizes: 24″x36″, 47″x36″ and 68.5″x36″, with optional tool head configurations and material hold-down systems. Dual Head Design features 500 grams and 1000 grams maximum down force for more efficient marking and cutting workflows.



Features

• Dual Head Design: 500/1000 grams Cutting Force
• 2 Media Hold down methods available: Electrostatic or Vacuum
• Operate in Horizontal or Inclined Model (Vacuum table-horizontal only)
• D-Cut Software imports DXF Datax
• Cutting Master Plug-in for Adobe® Illustrator
• 0.118″ (3mm) Blade for cutting thicker material up to E Flute
• New Optional Creasing Tool for Corrugated Media



Employed in These Industries

• Garment Pattern Cutting & Marking
• Shoe Pattern Cutting & Marking
• Package Design Prototyping
• Monument & Stone Sandblast Mask
• Industrial Films for Electronics
• Reflective Highway and Road Signs
• Offset Printing Blanket cutting
• Architectural Model Building



The FC2250 Series Cutting Plotters Handle a Wide Range of Media

• Apparel patterns
• Compressed foam sheets
• Corrugated cardboards
• Packaging samples
• Containers and road signs
• Sandblast rubber templates
• Stencils, gaskets
• Packaging short run



The FC2250 Comes in Three Table Sizes

• FC2250-60 24″ X 36″
• FC2250-120 36″ X 47.2″
• FC2250-180 36″ X 68.5″



Specfications

Model name	FC2250-60VC	FC2250-120VC	FC2250-120MG	FC2250-180VC
Configuration	Digital servo system, Flatbed
Media hold-down method	Vacuum suction *1		Magnetic	Vacuum suction *1
Effective cutting area	610 x 920 mm (24.0 x 36.0 inch)	1200 x 920 mm (47.2 x 36.0 inch)		1740 x 920 mm (68.5 x 36.0 inch)
Mountable media	950 mm (37.4 inch)(Y-axis direction)
Media type	6Marking film (vinyl, fluorescent, and reflective) Stiff paper/card (for stencils, etc.)up to 1.0 mm thick *2 Polystyrene foam sheets *3 Sandblast rubber sheets up to 1.0 mm thick *3 Microflute board (F/G grades) Clear sheets for plastic boxes High-intensity reflective film *4
Maximum cutting speed	400 mm/s (16 inch/s) (1 to 40 cm/second in 40 steps)
Cutting pressure	Tool 1: Max. 4.9N (500 gf), in 40 steps Tool 2: Max. 9.8N (1 kgf), in 40 steps
Minimum character size	approx. 10 mm square (varies with the character font and media)
Mechanical resolution	0.0025 mm (2.5μm)
Programmable resolution	GP-GL mode: 0.1/0.05/0.025/0.01 mm HP-GL™ *5 : 0.025 mm
Distance accuracy	Max. 0.1% of the distance moved or 0.1 mm, whichever is lager *6
Perpendicularity	Max. 0.5 mm / 900 mm
Repeatability	Max 0.1 mm *6
Standard interfaces	RS-232C, USB2.0 (Full speed)
Buffer memory	2 Mbyte
Command sets	GP-GL and HP-GL™ *5 emulation (selected by menu)
Number of tools	2 tools
Cutter blade, pen, and tool types	Cutter blade: supersteel Pens: Water-based fiber-tip pen, oil-based ballpoint pen Creasing/scoring tool
Others	ARMS (Advanced Registration Mark Sensing System), Reverse-side cutting and creasing with ARMS, Copy function, Creasing function, Repeatedly cut function
Power supply	100 to 240 VAC, 50/60 Hz (Auto switching)
Power consumption	Max. 120 VA
Operating environment	Temperature: +10 to +35 degree C (44 to 95 degree F) , Humidity: 35 to 75% RH (non-condensing)
Guaranteed accuracy environment	Temperature: +16 to +32 degree C (55 to 90 degree F), Humidity: 35% to 70% RH (non-condensing)
External dimensions (W x D x H) *7	920 x 1285 x 857mm *8 (36.2 x 50.6 x 33.7 inch)	1568 x 1285 x 944 mm *8 (61.7 x 50.6 x 37.2 inch)		2068 x 1285 x 944 mm *8 (81.4 x 50.6 x 37.2 inch)
	The table cannot be tilted	The table cannot be tilted	1568 x 987 x 1687 mm *9 (61.7 x 38.9 x 66.4 inch)	The table cannot be tilted
Weight	approx. 58 kg *10 (128 lbs.)	approx. 69 kg *10 (152 lbs.)		approx. 74 kg *11 (163 lbs.)
Compatible OS	Windows 10 / 8.1 / 8 / 7 / Vista, Macintosh OS X10.6-10.10 *11
Certifications	UL , cUL , CE making, FCC-A, EN55022-A, RoHSCling
