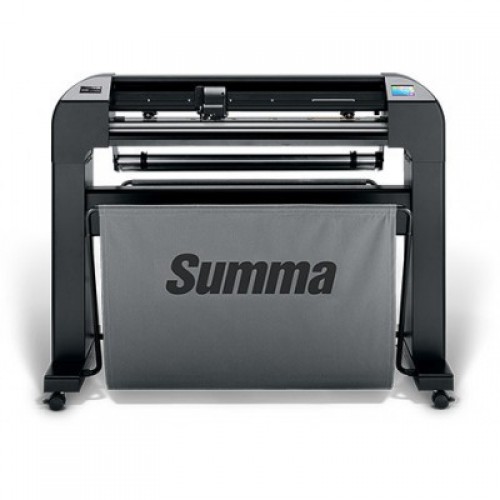

Summa S2 D75

Summa S2 D75

Summa S2 D Series vinyl cutters combine the highest quality engineering with the most advanced cutting technology to deliver the longest contour cutting accuracy for printed graphics.

With the constant evolution of sign-making, you need equipment that is both flexible and durable, now more than ever.

Summa S Class 2 cutters are built on a foundation of rock-solid reliability and offer features to handle virtually anything you throw their way. Whether cutting vinyl, digital die-cutting, plotting on paper or beyond, Summa S2 D Series is a do-it-all dynamo with the resilience to perform day in and day out.

Three powerful digital servomotors, combined with the next generation of Summa's acclaimed optical positioning alignment system, OPOS-X, allow for unmatched accuracy over long job runs - out pacing any other contour cutter on the planet.

The lightning-fast internal processor operates seven times faster than ever before – while the touch-sensitive color LCD control panel and intuitively redesigned user interface allows the operator to effortlessly adjust any parameter of the S2. Plus, with Summa's new FlashCut feature, cut files can be stored on a USB memory drive and retrieved instantly via the S2's interface. Frequently processed jobs can be accessed directly from the cutter without the use of a PC.

Another new S2 innovation is the addition of Ethernet connectivity for faster communication and data transmission speeds. Multiple computers can now control one unit across a network, or a crossover cable can be used for direct connection.

Designed specifically for high-volume vinyl and digital print shop environments, Summa S Class cutters have a long-established reputation for reliability, innovation and outstanding performance – all with tracking accuracy that is second to none. When tight deadlines loom and your jobs require hassle-free, perfect cuts, the S2 D Series truly shines.



MODELS	S2 D75	S2 D120	S2 D140	S2 D160
CUT TYPE	Drag knife with TurboCut and Tangential Emulation Modes
CUT WIDTHS	S2 D75 29.2-inch (74.2 cm)	S2 D120 47.2-inch (120 cm)	S2 D140 53.1-inch (135 cm)	S2 D160 62.2-inch (158 cm), Extended Mode: width of the material
CUT SPEED	All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal
AXIAL ACCELERATION	Up to 4 G
MAXIMUM ACCELERATION	Up to 5.5 G diagonal
REPEATABILITY	Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long
TRACKING	164 ft. (50 m) long
CUT FORCE	0-400 grams of down-force, in 5 gram increments
DISPLAY LANGUAGE	English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese
CONNECTIVITY	USB; Ethernet
POWER REQUIREMENTS	AC 100V to 240V ±10% 48-62Hz, 85 VA maximum
DIMENSIONS	S2 D75 55.5 (W) x 26.8 (D) x 43.7 (H) in. 141 (W) x 68 (D) x 111 (H) cm	S2 D120 73.6 (W) x 26.8 (D) x 43.7 (H) in. 187 (W) x 68 (D) x 111 (H) cm	S2 D140 79.6 (W) x 26.8 (D) x 43.7 (H) in. 202 (W) x 68 (D) x 111 (H) cm	S2 D160 88.6 (W) x 26.8 (D) x 43.7 (H) in. 225 (W) x 68 (D) x 111 (H) cm
SHIPPING WEIGHT	S2 D75 152 lbs (69 kg)	S2 D120 190 lbs (86 kg)	S2 D140 214 lbs (98 kg)	S2 D160 251 lbs (114 kg)
OPERATING TEMPERATURE	59˚ to 95˚F (15˚ to 35˚C)
STANDARD ACCESSORIES	WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Pouncing Pin and Holder, Stand and Basket.
OPTIONAL ACCESSORIES			Motorized Take-Up Roller for Summa S2 140 and S2 160 Media Rack for Summa S2 140 and S2 160
WARRANTY (USA)	Three-year parts and labor limited warranty, toll-free technical support
