Product Description

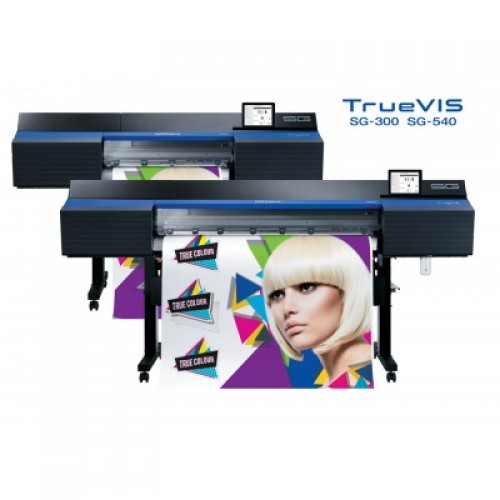

Roland TrueVIS SG-300
Whether you’re just starting out or wanting to expand production, new TrueVIS SG series printer/cutters offer all the quality and versatility of a Roland, at an unbeatable price. TrueVIS ushers in a new era of integrated printing and contour cutting, and the SG delivers the value you need to quickly and easily build your business.
Bring Your Vision to Life
With the integrated printing and cutting technology of TrueVIS at your fingertips, you can print and automatically contour cut dynamic decals, signs and vehicle graphics, plus brilliant banners, amazing apparel and more. New FlexFire™ print heads deliver vibrant color and razor-sharp image output that cannot be matched by latex or other devices. Added productivity – up to 60% faster than previous comparable models – means you can print more, and profit more.
Make Everyday Print/Cut Production Easier
- Rigid new industrial design minimizes vibrations for optimum printing and cutting
- Improved motor and drive systems add durability for continuous production
- Newly designed grit roller for non-skew media handling
- New Roland VersaWorks Dual RIP software included with purchase
- Optional take-up and drying units available to boost performance
Ink that Lowers Costs while Raising Quality
TrueVIS INK is available in CMYK colors and comes in 500ml pouches that slide into a hidden ink bay. The ink bay features reusable cartridges that support clean use with less waste. TrueVIS INK is the next evolution for eco-solvent ink technology, meeting user demands for a lower cost, competitively priced ink with a wider color gamut and stricter environmental standards. It is also GREENGUARD Gold certified for indoor air quality.
Contour Cut More Media for More Profit
Roland DG is a pioneer in printing and cutting technology. With the TrueVIS SG, the innovation continues in Roland DG's most advanced integrated print/cut technology to date. Featuring a new cut carriage and blade holder, with increased downforce and accuracy, you can work with more media and discover more profit opportunities.
All new VersaWorks™ Dual RIP Included
VersaWorks™ Dual is included with the purchase of the TrueVIS SG and utilizes both PDF and PostScript engines to give users superfast preview times and improved file handling, plus all the user-friendly features of VersaWorks.
- User-friendly VersaWorks™ interface
- Natively processes transparencies, drop shadows and other effects
- Ability to save and store unlimited queue settings
- Built-in Pantone® and Roland Color System - spot color libraries
- Predictive ink calculator estimates the amount of ink needed for each job
- Advanced cropping, tiling, nesting and variable data functions
| Specifications | |||
| Model | SG-540 | SG-300 | |
| Printing technology | Piezoelectric inkjet | ||
| Media | Width | 8.3 to 54 in (210 to 1371 mm) | 7.2 to 30 in. (182 to 762 mm) |
| Thickness | Maximum 39 mil (1.0 mm) with liner for printing | ||
| Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner for cutting | |||
| Roll outer diameter | Maximum 8.3 in. (210 mm) | ||
| Roll weight | Maximum 66 lbs (30 kg) | Maximum 55 lbs (25 kg) | |
| Core diameter *1 | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||
| Printing/cutting width *2 | Maximum 53 in (1,346 mm) | Maximum 29 in 736 mm) | |
| Ink | Type | Roland TrueVIS INK | |
| Capacity | 500 cc | ||
| Colors | CMYK | ||
| Printing resolution (dots per inch) | Maximum 900 x 900 dpi | ||
| Maximum Speed (CMYK, 7 pass) | 101.2 ft2/hr | ||
| Standard Speed (CMYK, 10 pass) | 85 ft2/hr | ||
| Cutting speed | 10 to 300 mm/s (0.4 to 11.8 in/s) | ||
| Blade force *3 | 30 to 500 gf | ||
| Blade offset | 0 to 0.059 in (0 to 1.5 mm) | ||
| Software resolution (when cutting) | 0.000984 in/step (0.025 mm/step) | ||
| Distance accuracy (when printing) *4 *5 | Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater | ||
| Distance accuracy (when cutting) *3 | Error of less than ±0.4% of distance traveled, or ±0.3 mm, whichever is greater | ||
| When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled, or ±0.1 mm, whichever is greater | |||
| Repeatability (when cutting) *4 *6 | ±0.1 mm or less | ||
| Alignment accuracy for printing and cutting *4 *7 | ±0.5 mm or less | ||
| Alignment accuracy for printing and cutting when reloading media *3 *7 | Error of less than ±0.5% of distance traveled, or ±3 mm, whichever is greater | ||
| Media heating system *8 | Print heater | Setting range for the preset temperature: 86 to 112ºF (30 to 45ºC) | |
| Dryer | Setting range for the preset temperature: 86 to 122ºF (30 to 50ºC) | ||
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC 100 to 120 V ±10%, 9.8A, 50/60 Hz | AC 100 to 120 V ±10%, 7.9A, 50/60 Hz | |
| AC220V to 240V±10%, 4.0A, 50/60Hz | AC 220 to 240 V ±10%, 2.7A, 50/60 Hz | ||
| Power consumption | During operation | 1,050 W | 710 W |
| Sleep mode | 20 W | 20 W | |
| Acoustic noise level | During operation | 65 dB (A) or less | |
| During standby | 48 dB (A) or less | ||
| Environmental | Power on (*10) | Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80 % RH (no condensation) | |
| Power off | Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80 % RH (no condensation) | ||
| Dimensions (with stand)) | 105.7(W) x 29.3(D) x 51.6(H) 2685(W) x 745(D) x 1310(H) mm | 81.5[W] x 29.3[D] x 51.6[H] in 2070[W] x 745[D] x 1310[H]mm | |
| Weight (with stand) | 392 lb (178kg) | 324lb (147kg) | |
| Included items | Stand, power cord, blade, blade holder, media clamps, media holder, replacement blade for separating knife, software RIP, user's manual, etc. | ||
*1 The media holder of this machine is exclusively for media with a paper tube core inner diameter of 3 inches. To use a 2 inch media core, please use the optionally available media flanges.
*2 The length of printing or cutting is subject to the limitations of the program.
*3 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
*4 Using Roland specified media, print travel of 1m. Temperature: 25°C (77°F), humidity: 50%. Roll media must be loaded correctly. Applicable when all pinch rollers that can be used with the media width are used. Side margins: 25 mm (1.0 in.) or more for both the left and right margins. Front margin: 35 mm (1.4 in.) or more. Excluding expansion/contraction of the media. Not guaranteed when the print heater or dryer is used. Assumes all correction and adjustment functions of the machine have been used properly.
*5 Print travel: 1 m (39.4 in.)
*6 [PREFEED] menu item must be set to "ENABLE." Range for assured repetition accuracy. 54" model -For media with a width exceeding 24 in (610 mm in.): Length 315 in (8000 mm)- 30" Model Width 24 in (610mm) or less: Length 118.2 in (4000 mm)
*7 Provided that the media feed length is 3,000 mm (118.1 in.) or less. Excludes the effects of slanted movement and of expansion and contraction of the media.
*8 Data size: 54" Model: 39.4 in. (1000 mm) in the media-feed direction, 1,346 mm (53.0 in.) in the carriage-movement direction. 30" Model: 39.4 in. (1000mm) in the media-feed direction, 29in.(736 mm)in the carriage-movement direction. No Lamination. Automatic detection of crop marks at 4 points when media is reloaded. During cutting, [PREFEED] menu item must be set to "ENABLE." Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
*9 Warm-up is required after the power is turned on. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and the media width, the set temperature may not be reached.
*10 Operating environment: Use the machine in an operating environment within its range
| Roland VersaWorks Dual System Requirements | ||
| Operating system | Windows® 10 (32/64-bit) | |
| Windows® 8.1 (32/64-bit) | ||
| Windows® 7 Professional / Ultimate (32/64-bit) | ||
| CPU | Intel® Core™2 Duo, 2.0 GHz or faster recommended | |
| RAM | 2 GB or more recommended | |
| Video card and monitor | A resolution of 1,280 x 1,204 or more recommended | |
| Free hard-disk space | 40 GB or more recommended | |
| Hard-disk file system | NTFS format | |
| Optical drive | DVD-ROM drive | |
* Roland VersaWorks Dual is a 32-bit application, which runs on 64-bit Windows® with WoW64 (windows 32-bit on Windows 64-bit).
