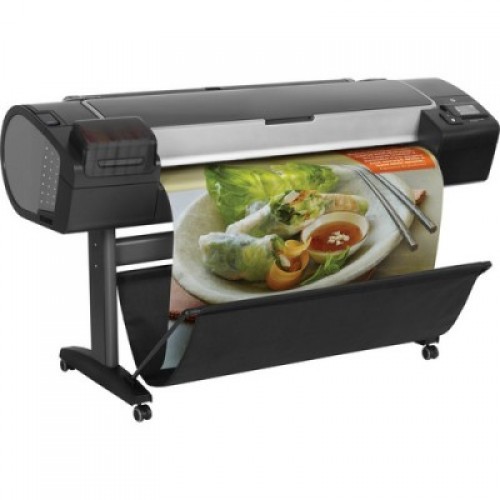

HP Designjet Z5400 44 Inch PostScript EPrinter

HP Designjet Z5400 44 Inch PostScript EPrinter

PRODUCT HIGHLIGHTS

• 2400 x 1200 dpi Maximum Resolution
• Dual-Roll Support & Auto Media Switching
• Multi-Dimensional Smart Drop Placement
• Six Ink System with Three Black Inks
• Borderless Printing up to 44"-Wide
• Broad File Format Compatibility
• Integrated 320GB Hard Drive
• Supports Sheet and Roll Type Media
• Gigabit Ethernet and USB 2.0 Interface
• Built-In PostScript Support



Printing Method
Print Resolution	Up to 2400 x 1200 optimized dpi
Margins	Roll: 0.2 x 0.2 x 0.2 x 2" / 5 x 5 x 5 x 5 mm (borderless on photo roll media) Sheet: 0.2 x 0.7 x 0.2 x 0.2" / 5 x 17 x 5 x 5 mm
Ink Types	Pigment-based
Line Accuracy	+/- 0.1% (of the specified vector lens or +/- 0.008" / 0.2 mm [whichever greater] at 73°F / 23°C, 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks)
Minimum Line Width	0.0015" / 0.04 mm (HP-GL/2 addressable)
Guaranteed Minimum Line Width	0.0031" / 0.08 mm (ISO/IEC 13660:2001 (E); measured on HP Matte Film)



Image Quality
Short Term Color Stability	< 1 dE2000 in less than 5 minutes (with HP Premium Instant Dry Photo Satin media with Original HP inks, right after calibration)
Long Term Print-to-Print Repeatability	Average < 0.5 dE2000, 95% of colors < 1.4 dE2000 (with HP Premium Instant Dry Photo Satin media with Original HP inks, right after calibration)
Maximum Optimal Density	4 L* min/2.5 D (with HP Premium Instant Dry Photo Gloss media with Original HP inks)



Media
Handling	Two automatic roll feeds Smart roll-switching Sheet feed Media output bin Automatic cutter (cuts all media except canvas and banners)
Size	Sheets: 8.3 x 11" to 44 x 66" / 21 x 27.9 cm to 111.8 x 167.6 cm Rolls: 11 to 44"-wide / 27.9 to 111.8 cm-wide
Thickness	Up to 19.7 mil / 0.5 mm



Memory
Memory Amount	64 GB (virtual; based on 640 MB RAM) 320 GB hard disk



Connectivity
Interface	Gigabit Ethernet (1000BASE-T), Hi-Speed USB 2.0, EIO Jetdirect accessory slot
Print Languages	Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2, HP-RTL
Printing Paths	Printer driver, HP Embedded Web Server, HP Instant Printing PRO, USB, email printing
Driver	PostScript Windows and Mac drivers



Acoustics
Sound Pressure	Active: 45 dB(A) Standby: 23 dB(A)
Sound Power	Active: 6.7 B(A) Standby: 4.1 B(A)



Power
Consumption	Printing: < 120 W Ready: < 27 W Sleep: < 5 W (< 22 W with embedded digital front end) Off: 0.1 W
Requirements	100-240 VAC (+/- 10%; auto-ranging) 50/60 Hz (+/- 3 Hz) 2 A max



Environmental
Operating Temperature	41-104°F / 5-40°C
Storage Temperature	-13-131°F / -25-55°C
Operating Humidity (Relative)	20-80% (non-condensing)



Certifications
Safety	USA and Canada (CSA certified), EU (LVD and EN60950-1 compliant), Russia/Kazakhstan (EAC), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE)
Electromagnetic Compliance	Compliant with Class B requirements: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI) Certified as Class A product: Korea (KCC)
Environmental	ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH



General
Dimensions	Printer: 69.7 x 28.4 x 41.3" / 177.0 x 72.1 x 105.0 cm Shipping: 76 x 30.3 x 28" / 193.0 x 77.0 x 71.0 cm
Weight	Printer: 189.6 lb / 86 kg Shipping: 253.5 lb / 115 kg



Packaging Info
Package Weight	253.0 lb
Box Dimensions (LxWxH)

69.7 x 41.3 x 28.4"
