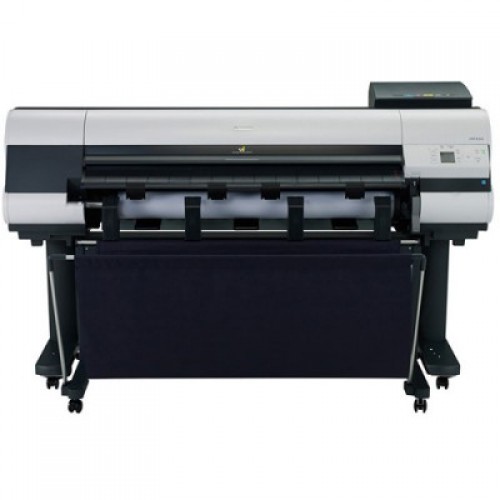

Canon ImagePROGRAF IPF830 Large Format Printer

Canon ImagePROGRAF IPF830 Large Format Printer

The Canon imagePROGRAF iPF830 Large Format Printer is a 44" wide printing system designed to enhance productivity for medium to large workgroups, with high speed throughput. The imagePROGRAF iPF830 printer is a production printing solution with high line accuracy, a 320GB hard drive, excellent media handling, and a support for HP-GL/2 and HP RTL files. It is an easy-to-use production printing solution for professionals with a need for producing intricately detailed full-color renderings, CAD drawings, GIS maps and other large-format output.

The built-in 320GB hard drive makes handling multiple complex jobs simple, especially in shared printer environments. You can relieve workload from your computer, store and retrieve print jobs with the touch of a button, and utilize a Remote User Interface and password-protected mailboxes to keep your workgroup productive. The iPF830 printer's Economy Print Mode helps lower cost-per-print while the sub-ink tank system enables hot-swap ink replacement for continuous printing.



• Print Longer Without Interruption
• High-Speed Printing with L-COA processor
• Precision Printing with a high-density PF-04 print head
• Gigabit Ethernet compatible
• 320GB hard drive
• High chroma magenta ink
• Reactive ink system
• Direct print & share
• imagePROGRAF Print Utility
• Accounting Manager
• Canon Print Driver
• Economy Print Mode
• Optimized module for AutoCAD
• Print plug-in for Microsoft Office
• PosterArtist Lite



Printing Technology	5-Color 44" (111.8 cm) printer
Nozzle Pitch	1200 dpi
Number of Nozzles	Total: 15,360 MBK: 5,120 C, M, Y, BK: 2,560 nozzles each
Print Resolution	2400 x 1200 dpi (Max)
OS Compatibility	Windows® (XP 32-bit/Vista/7/8/8.1) Macintosh® (OSX 10.6.8 - 10.10)
Standard Interface	High-Speed USB 2.0  10/100/1000 Base-T/TX
Minimum Ink Droplet Size	4.0 pl
Ink Tank Capacity	Ink Capacity: 330 ml , 700 ml per color
Ink Type	Dye/Pigment Reactive Ink
Hard Drive	320 GB
Media Width	Cut Sheet: 8 to 44" (20.3 to 111.8 cm)  Roll Feed: 10 to 44" (25.4 to 111.8 cm)
Media Thickness	2.8 to 31.5 mil (0.07 to 0.8 mm)
Maximum Roll Print Length	Roll Feed: 59' (18 m)
Maximum Media Roll Diameter	5.9" (15.1 cm)
Borderless Printing Width	10, 14, 17, 24, 36, 42" (25.4, 35.6, 43.2, 61, 91.4, 106.7 cm)
Paper-Feed Method	Roll Feed: One roll, front loading, front output  Cut Sheet: One sheet, front loading, front output
Languages	GARO (Canon Proprietary), HP-GL/2, HP-RTL
Noise Level	Operation: 52 dB (A) or less  Standby: 35 dB (A) or less  Acoustic Power: Approx. 6.8 Bels or less
Power	Source: 100 to 240 VAC (50 to 60 Hz)
Power Consumption	Maximum: 190 W or less Standby: 5 W or less  Power Off: 0.5 W or less (compliant with Executive Order)
User Replaceable	Print Head: PF-04  Maintenance Cartridge: MC-10, MC-09 Ink Tanks: PFI-307 (330 ml: C, M, Y, BK, MBK)  PFI-707 (700 ml: C, M, Y, BK, MBK)
Software	Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility4, PosterArtist Lite (PC Only), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
Environmental	Temperature: 59 to 86°F (15 to 30°C)  Humidity: 10 to 80%
Dimensions (WxDxH)	75 x 51 x 45" (190.5 x 129.5 x 114.3 cm)
Weight	380 lb (172.4 kg)



Packaging Info
Box Dimensions (LxWxH)

58.0 x 58.0 x 46.0"
